VMC650 3 Axis CNC Vertical Machining Center Linear Guide CNC Milling Machine

Name: VMC650 3 Axis CNC Vertical Machining Center Linear Guide CNC Milling Machine
Brand: Matsumoto
Price: 12000 USD

Wholesale VMC650 3 Axis CNC Vertical Machining Center Linear Guide CNC Milling Machine from china suppliers

Certification : CE

Delivery Time : 25 working days

Payment Terms : T/T

Packaging Details : plywood case

Price : 12000-15000

Place of Origin : China

MOQ : 1

Brand Name : Matsumoto

Model Number : VMC650

Contact Now

VMC650 3 Axis CNC Vertical Machining Center Linear Guide CNC Milling Machine

Description:

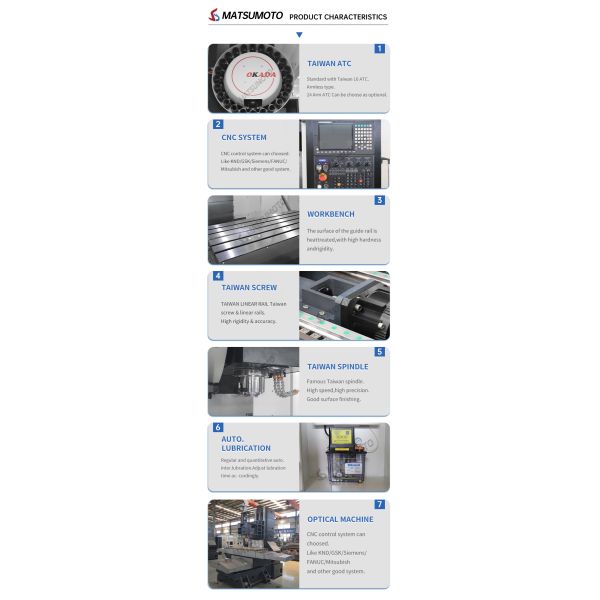

VMC650 is a compact 3-axis vertical CNC machining center with automatic tool changer, also known as CNC vertical milling machine. It adopts vertical spindle layout with BT40 taper spindle, independently developed high-rigidity cast iron frame and linear guide transmission system, integrating milling, drilling, boring, reaming, tapping and contour processing in one single setup.

All main structural parts (base, column, saddle, worktable) are made of high-grade gray cast iron with double aging vibration relief treatment, dense rib reinforcement design to eliminate internal casting stress, guaranteeing long-term stable rigidity and anti-vibration performance during heavy cutting and high-speed finishing.

PROJECT	UNIT	VMC650
Table size(L*W)	mm	800*500
Max. table load	kg	400
X/Y/Z axis travel	mm	600/500/500
Distance from spindle center to column guide surface	mm	550
Distance from spindle nose to worktable	mm	120-620
Max. feed speed(X/Y/Z)	Mm/min	0-8000
X/Y/Z Max. fast moving speed	M/min	24/24/20
Max. spindle speed	R/min	8000
Spindle taper	/	BT40(120)
Spindle power	kw	5.5
X/Y/Z servo motor	kw	2/2/3
Guide rail form X/Y/Z	/	Hard rail/Line rail
T slot(widthnumberpitch)	mm	183125
Positioning accuracy	mm	±0.05
Repeat positioning accuracy	mm	±0.03
Tool magazine form	/	Bamboo hat/Disk
Tool magazine capacity	/	16/24
Max. tool weight	kg	7
Max. tool diameter	mm	100
Total electrical capacity	KVA	10
Weight	kg	4000
Dimension(LWH)	mm	240020002550
